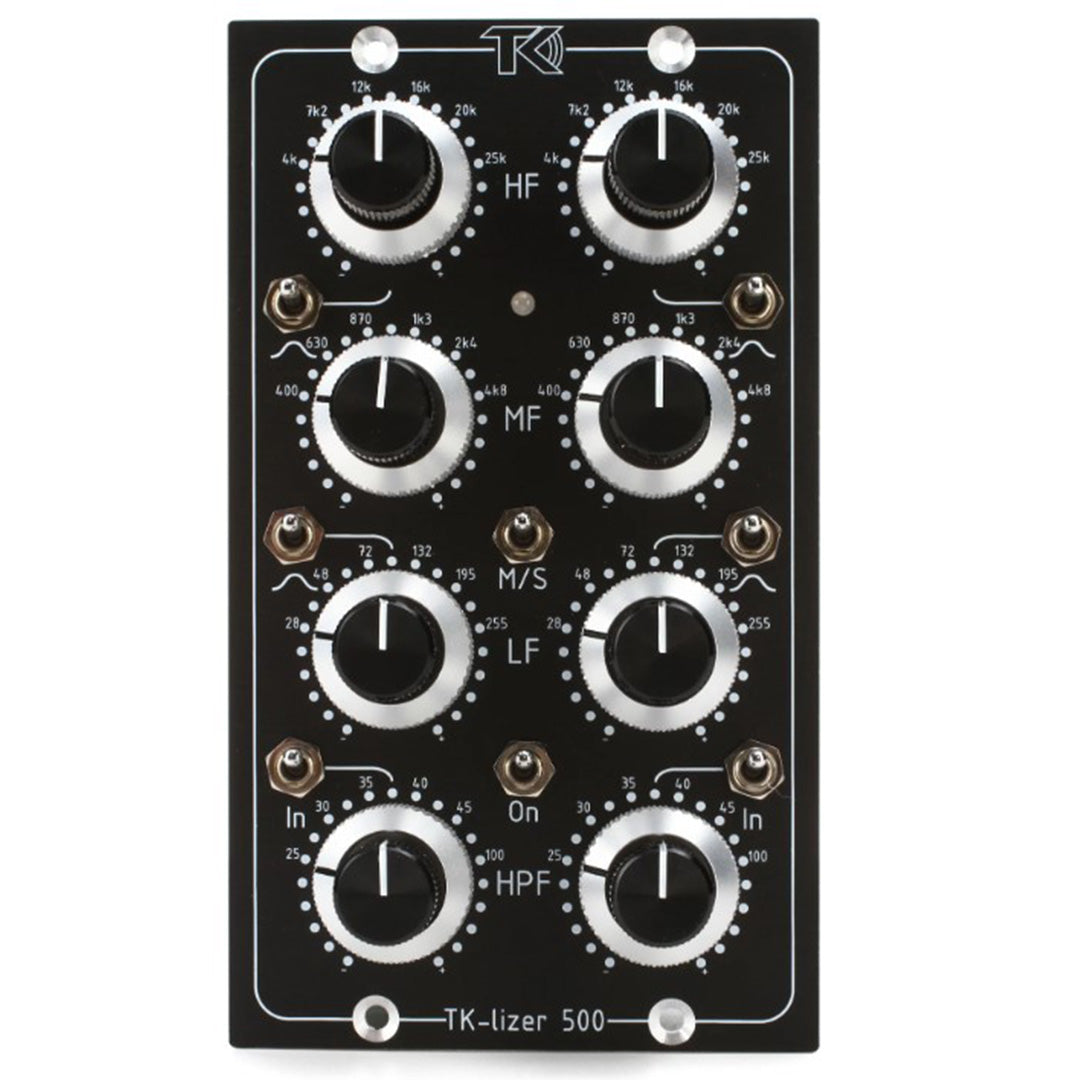

TK Audio TK-lizer 500

• 3 band Baxandall styled EQ.
• High and low bands switchable between shelf or peak.
• High Pass filter.
• All controls stepped for easy recall.
• M/S circuit.
• Electronically balanced for a clean path.

The TK-lizer 500 features all the power of the TK Audio’s flagship TK-lizer, including the M/S functionality that has made it such a staple in studios all over the world.
The three bands have a cut/boost range of +/-8dB in 41 steps. The low and high bands can be switched between peak or shelving mode. A high pass filter with a 12dB slope is also provided, and each channel has it’s own level control with a range from infinity to +6dB.

Using the built in M/S function, you can adjust the middle and side signals separately before it is decoded back to a normal L/R signal. In M/S mode you can also adjust the stereo width using the level controls.

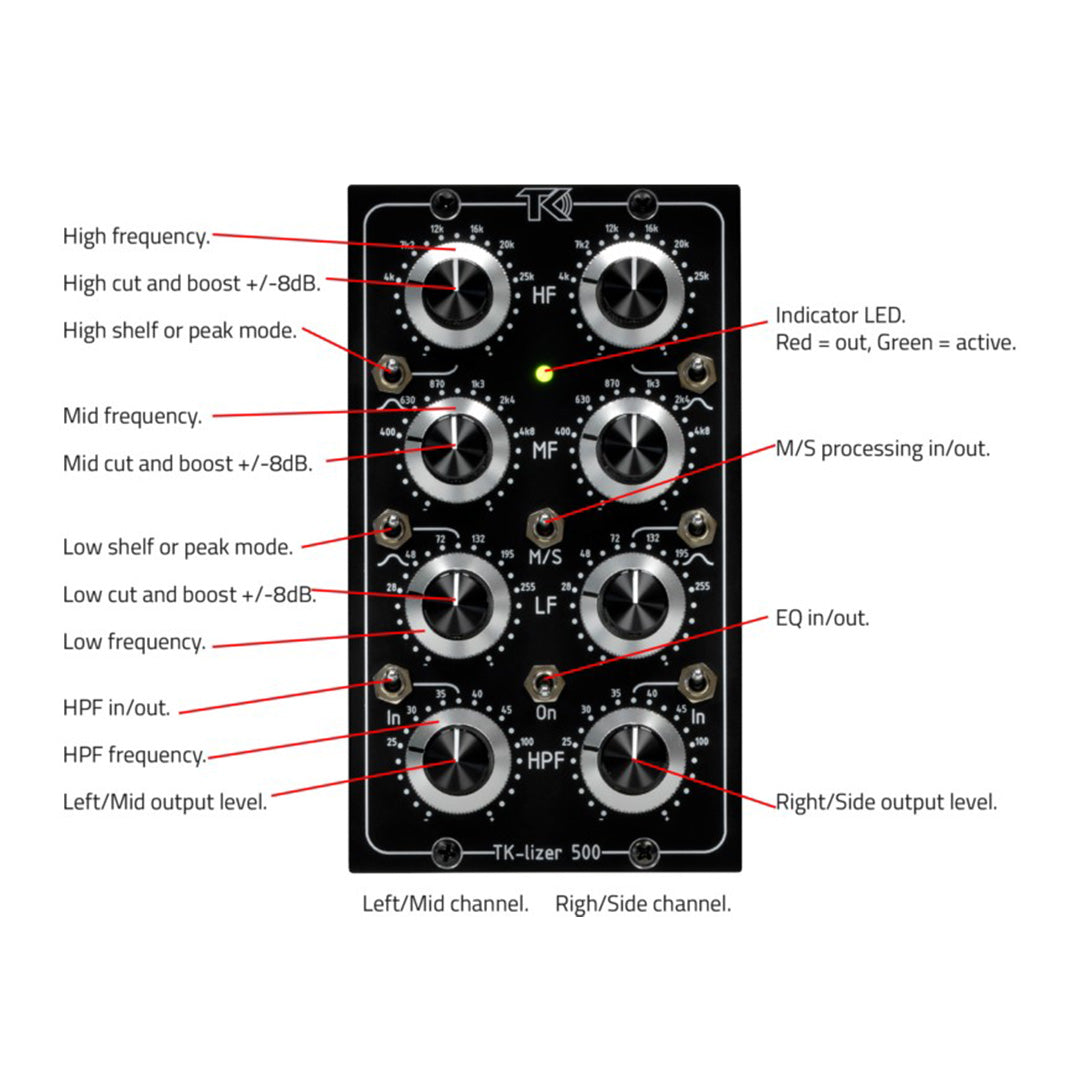

Features:
Low band:
Frequency: 28Hz, 48Hz, 72Hz, 132Hz, 195Hz, 255Hz
Boost/cut: +/-8dB
Peak or Shelf
Mid Band:
Frequency: 400Hz, 630Hz, 870Hz, 1.3kHz, 2.4kHz, 4.8kHz
Boost/cut: +/-8dB
High Band:
Frequency: 4kHz, 7.2kHz, 12kHz, 16kHz, 20kHz, 25kHz
Boost/cut: +/-8dB
Peak or Shelf
High Pass Filter
Frequency: 25Hz, 30Hz, 35Hz, 40Hz, 45Hz, 100Hz, 12dB / octave
In/Out
Level: Infinity to +6dB (Unity gain at 12’o lock)
EQ in/out. (LED red for out, green for in)
M/S in/out

Specifications and components may be changed or updated without further notice.
