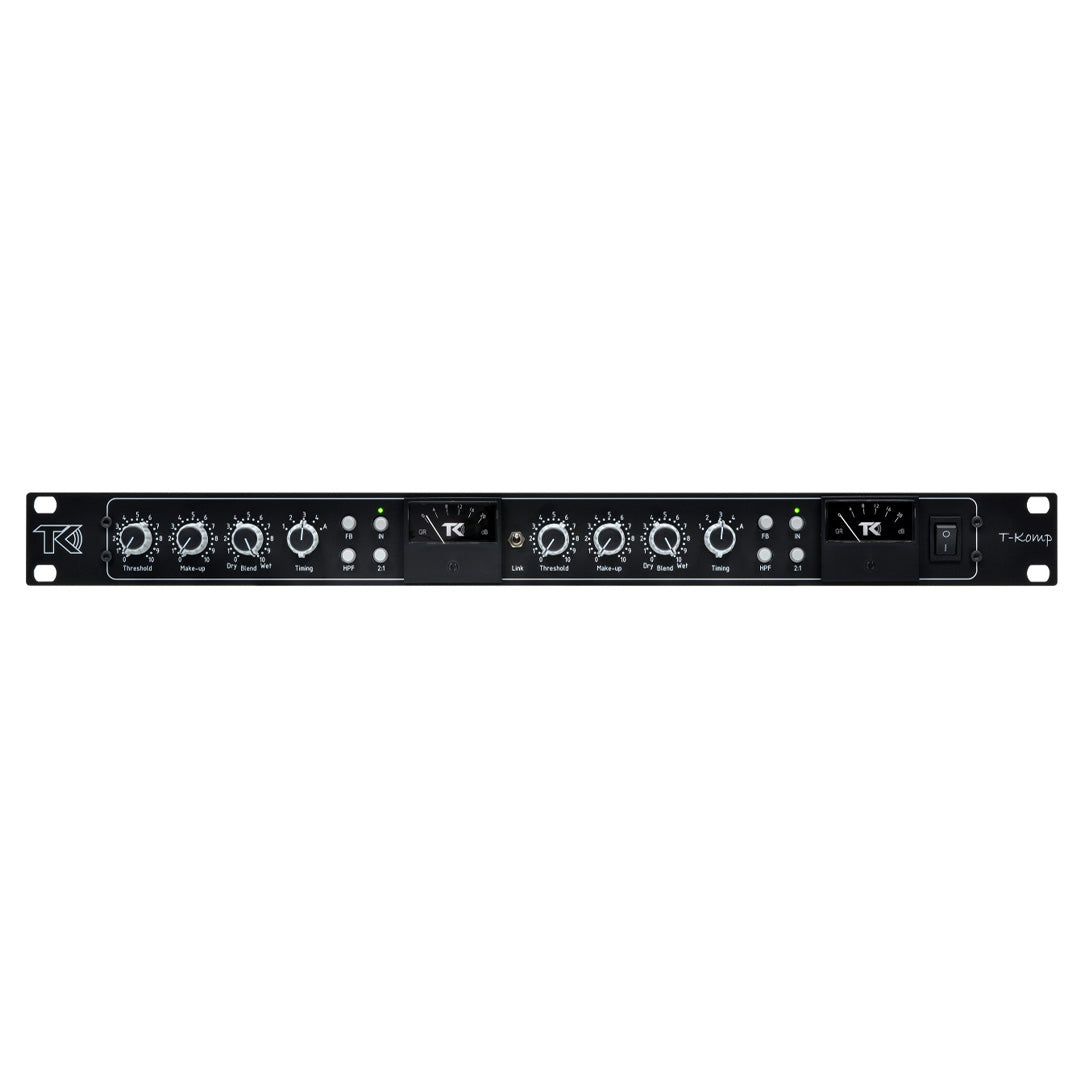

TK Audio T-Komp

Product description

Ratio which increases with the signal level.

• Two ratio ranges, 1:1 to 20:1 or 1:1 to 2:1.
• Feed-forward or feed-back mode.
• Five RMS settings, fast to slow and an adaptive mode.
• Blend control for parallel compression.

The T-Komp has a unique design which offers a modern take on the old vari-mu ratio curve. The ratio is level dependent and increases with the signal level, a feature that will give you numerous possibilities.

To make the T-Komp more useful it has two ratio ranges. The first one goes up to 20:1, perfect for instrument tracking and smashing drums etc., the second, 2:1, is a more narrow range which makes it more suitable for bus compression.

The T-Komp can be selected between feed-forward mode for a punchy, modern response or feed-back mode with a smoother, more musical response.

The RMS detector has five settings, four from fast to slow where number four, the slowest, is similar to the old 160VU. The fifth position is a program dependent adaptive mode.

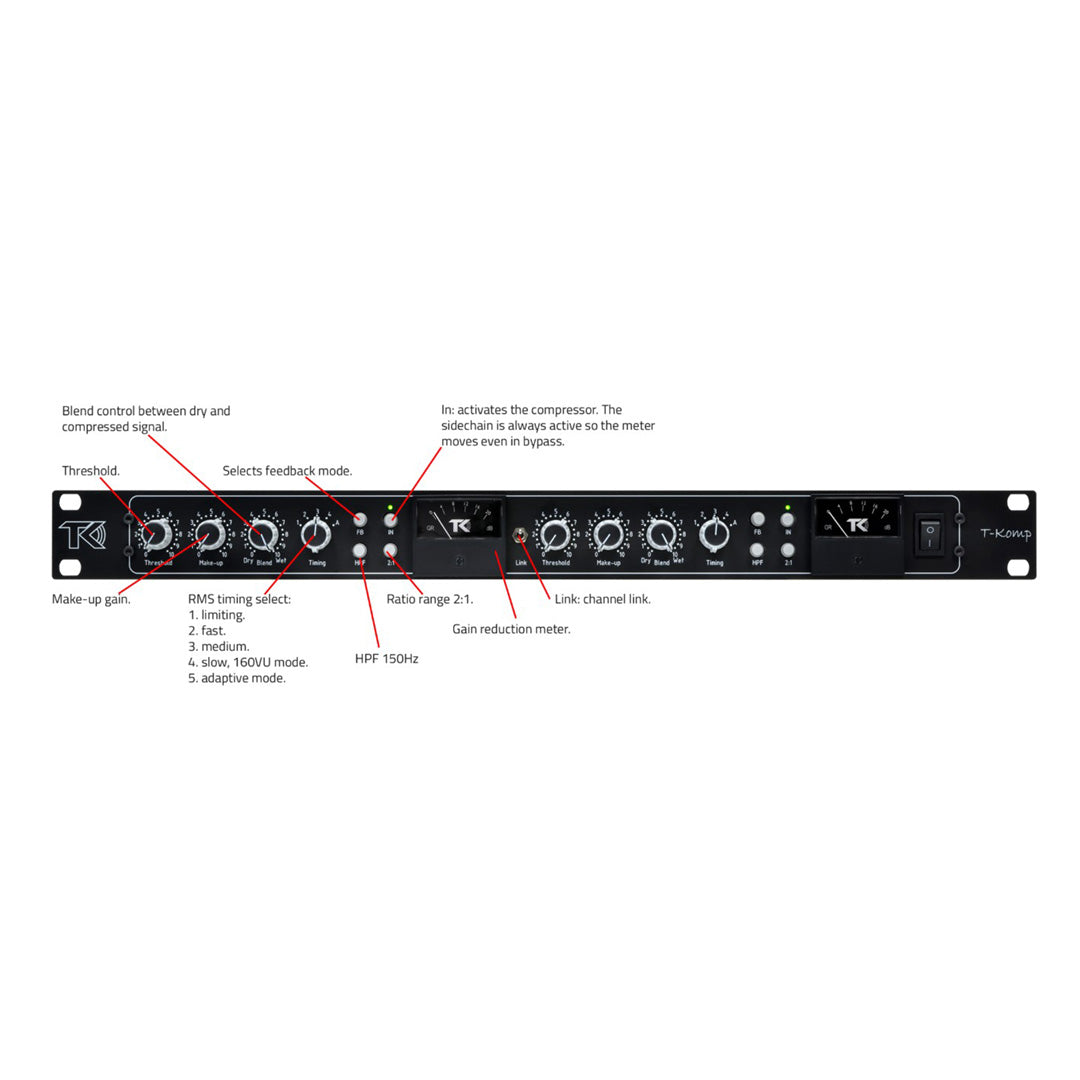

Features:

Threshold
Make-up gain: 0 to +20dB
Blend control: from dry to wet
Average timing:

• 1mS / 40mS (most useful for peak limiting)
• 5mS / 200mS
• 10mS / 400mS
• 25mS / 1000mS (similare to the old 160vu)
• Adaptive mode

The attack and release are locked in relationship to each other.
FB: selects feed-back mode
HP filter: 150Hz, -6dB octave
In: compression in/out
2:1: selects a more narrow ratio range
Gain reduction meter
Link switch
115v or 230v, selectable

Specifications and components may be changed or updated without further notice.
