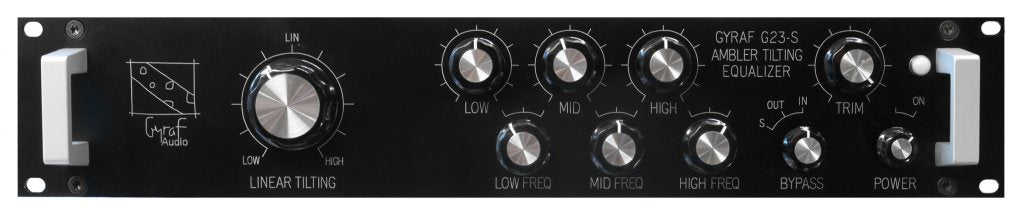

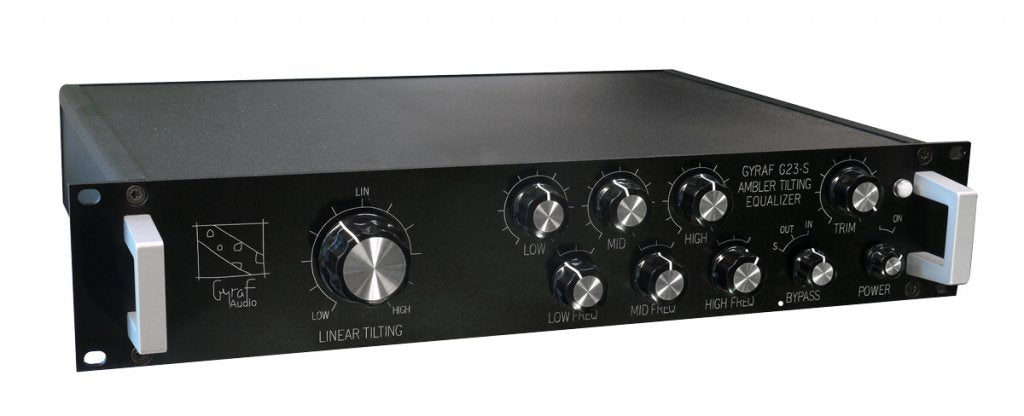

Gyraf Audio G23-S Stereo Tilt EQ

The G23-S is a stereo Tilt EQ aimed to tad a mix or master darker or brighter without messing up the overall definition. Gentleness and subtlety are main design targets: Tilt and Highs at +/-4dB, Mids at +/-2dB, and Lows at +/-6.5dB.
The Tilt is designed around a highly linear 1dB/oct slope filter, so that rotating the tilt control will tilt an almost ruler-straight response curve, to a maximum steepness of 1dB/octave. And to correct outer ends of spectrum, a gentle Baxandall tone control shelving lows and highs and a wide-Q bell for the mids - each at three selectable frequencies - have been added.
The G23-S is based on tubes and passives alone. Bypass is full-relay, and it has a gain trim function for easing comparison between direct and processed material.

Details | Technical
● Stereo Tilt EQ with a highly linear 1dB/oct slope filter
● Tilt and Highs at +/-4dB, Mids at +/-2dB, and Lows at +/-6.5dB
● hard relay bypass
● 230V mains voltage (others on request)
Details | Operability
● Linear Tilt, Low, Mid & High Freq.
● Baxandall tone control shelving lows and highs
● wide-Q bell for the mids
● Switch between Tube and Solid State Stage
● Trim to match levels
